Two plate injection mold

author: UnIverse plastic

2023-12-22

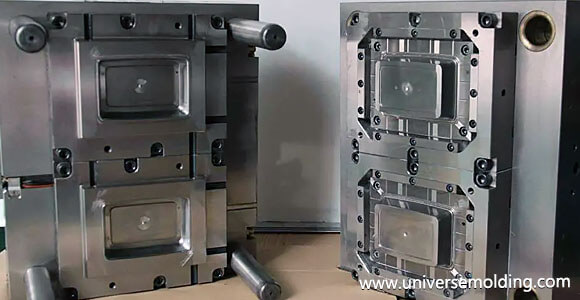

What is a two plate mold

two-plate plastic mold is a common injection mold type mainly used for injection molding of plastic products. It consists of the following 2 main parts:

Moving mold: includes injection gate system and plastic part ejection mechanism.

Fixed mold: Contains the injection molding cavity of the mold.

Working principle of double plate mold

Movable mold: Installed on the movable platen of the injection molding machine, it is used to eject the injection molded plastic parts from the mold cavity.

Fixed mold: Installed on the fixed template of the injection molding machine, the injection mold cavity is used for injection molding.

The molten plastic is injected into the cavity of the fixed mold through the nozzle of the injection molding machine. After the plastic is cooled and formed, the movable mold and the fixed mold are operated to separate, and the ejection mechanism of the movable mold ejects the finished plastic product from the cavity of the fixed mold. .

Advantages and Disadvantages of Double Plate Mold

Manufacturing cost: The 2-plate mold structure is relatively simple, and the manufacturing and maintenance costs are low.

Production efficiency: The injection molding and ejection process is fast and suitable for mass production.

Scope of application: Suitable for a variety of simple plastic products, especially those with regular shapes and no complex structures.

What plastic products are suitable for double plate molds?

Double-plate molds are widely used in the production of various plastic products, such as auto parts, electronic equipment casings, home appliances, etc.

Manufacturing cost of double plate mold

Depending on the size and structure of the double-plate mold, the price of the mold will be different. Secondly, different mold materials will also lead to different prices of the mold. You can consult the mold factory online to get the double-plate mold manufacturing cost price you need.

High quality double plate mold manufacturing factory

Universe Plastic Factory is a high-quality double-plate mold manufacturing factory with more than 15 years of manufacturing experience. It is a professional double-plate mold manufacturing factory in China. You are welcome to consult injection molding at any time.
